The Grid - multi-POD zone monitoring for industrial sites
Continuous multi-point monitoring. Correlated with site weather. Built to help pinpoint where gas events may be coming from.Deploy 6, 8, 10, or 12 4DS-E sensor PODs with a MET weather station, wirelessly meshed to a central Hub and connected to Foresight. POD spacing and placement can be configured for the specific application and site conditions.
Field-deployed, solar-powered, zero trenching

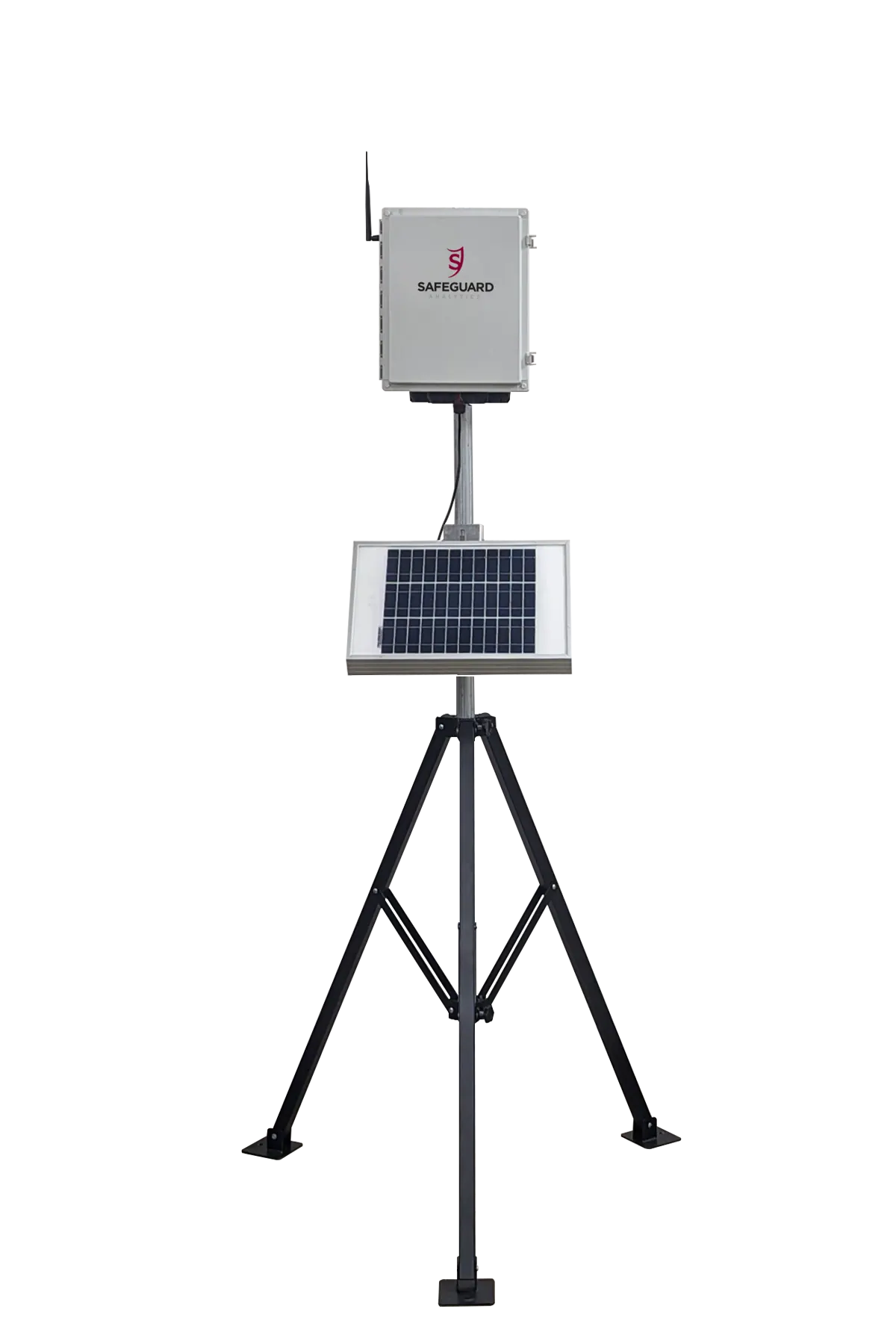

6× 4-Sensor PODs
Configured smart sensor modules - mesh-networked, solar plus battery autonomous for 5–7 days, in hazardous or non-hazardous enclosures. POD separation can be configured based on specific application needs.

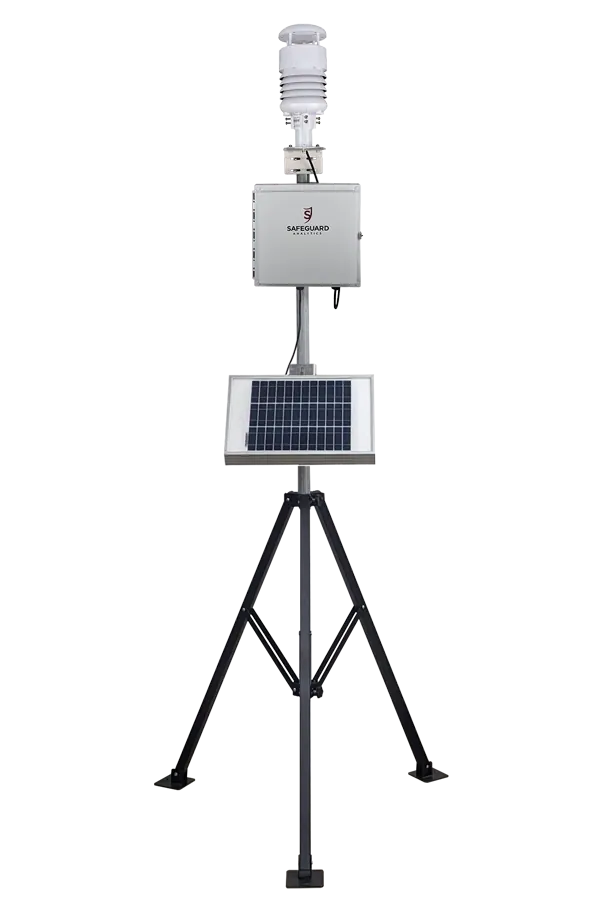

1× MET Station
Weather sensing - wind speed and direction, temperature, humidity, barometric pressure, and particulate matter - feeding wind-correlated leak localization.
1× HUB (Site Controller)
Industrial edge device with AC/DC power, 4G cellular gateway, and on-board data logging for redundancy. Supports up to 48 sensor points.
∞ Foresight Platform
Our sensor Pods combined with our meteorological pod feed continuous data to Foresight to correlate readings to where issues might be coming from - with alerting, perimeter mapping, and exportable compliance records.
Live map of every POD zone, wind vector, and current status across the site.

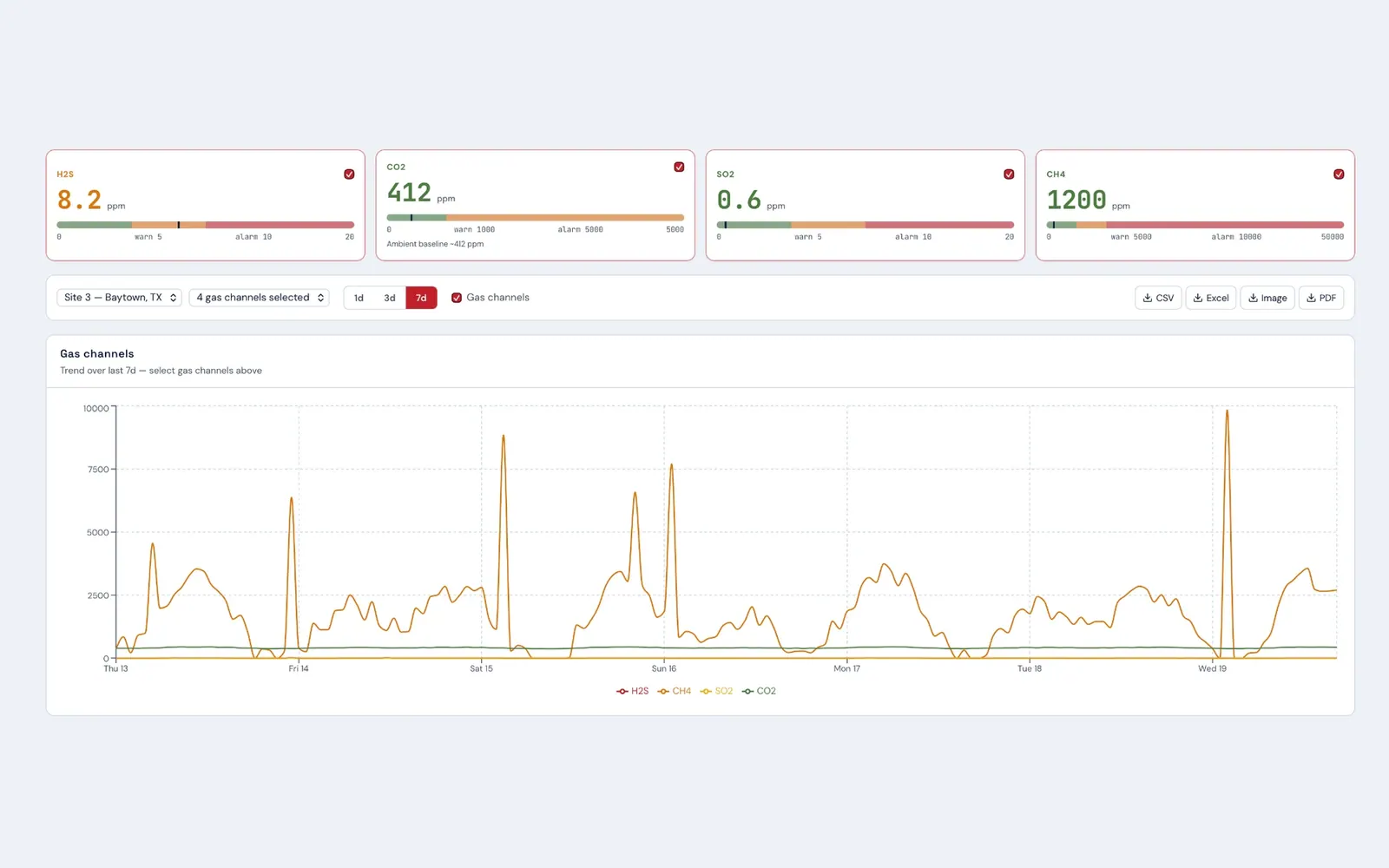

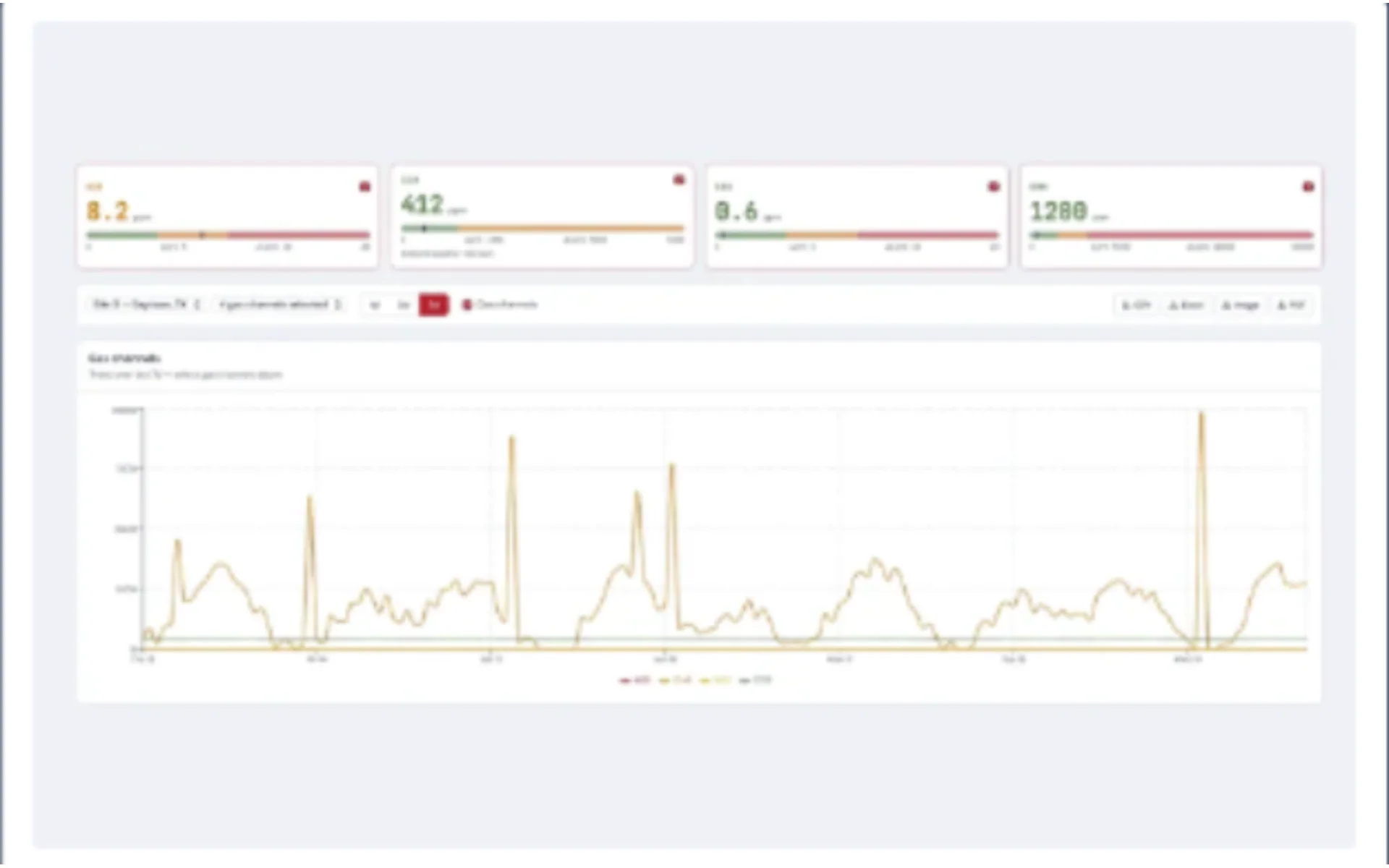

Every excursion with wind, baseline, and repair context - plus concentration against barometric pressure over time.
Alarms triaged by zone and severity, with acknowledgement and action history.
Exportable records generated from POD-zone telemetry.
Standard configurations
Every Grid ships with one MET station and one Hub. POD count scales with the site.
| Configuration | Typical coverage | Kit |
|---|---|---|
| 6 PODs | Small pad or single process area | 6 × 4DS-E · 1 MET · 1 Hub |
| 8 PODs | Compartmentalized pad or lift-station cluster | 8 × 4DS-E · 1 MET · 1 Hub |
| 10 PODs | Multi-unit facility or landfill working face | 10 × 4DS-E · 1 MET · 1 Hub |
| 12 PODs | Full-site perimeter and interior zone coverage | 12 × 4DS-E · 1 MET · 1 Hub |
Key Benefits
- Leak identification and correlation leveraging POD zones and a MET station
- Recommended action based on comparison to baseline, last repair, and next maintenance for zoned equipment
- Sensor performance reporting and recommendations
Typical Use Cases
- Oil and gas facilities for continuous gas monitoring
- Landfill and wastewater facilities
- Manufacturing facility perimeter monitoring
Outcome Metrics
- Site/facility performance metrics - alarms with classification, calibrations due, maintenance required, devices online
- Service management - work orders created and dispatched
- Value captured from addressing issues as they occurred
