Multi-sensor gas detection
A multi-gas diffusion-based monitoring system that displays the gas type, readings, and status for each channel of gas detection. Designed for monitoring a wide range of gases in ambient air, SA-XDS systems utilize SA2 Smart Sensors, each with a combination of optional gas types, sensitivity ranges, and alarm levels.
The system controller is equipped with an intuitive full-script Human Machine Interface (HMI) featuring a color LCD. On startup, the system controller automatically configures the installed Smart Sensors, identifying pertinent data for each sensor such as serial number, gas type, sensitivity range, most recent zero and span calibration data points, and last calibration date. User interface is accomplished using a programming magnet and front-panel push-button switches. The system is housed in a rugged NEMA 4X weatherproof enclosure.

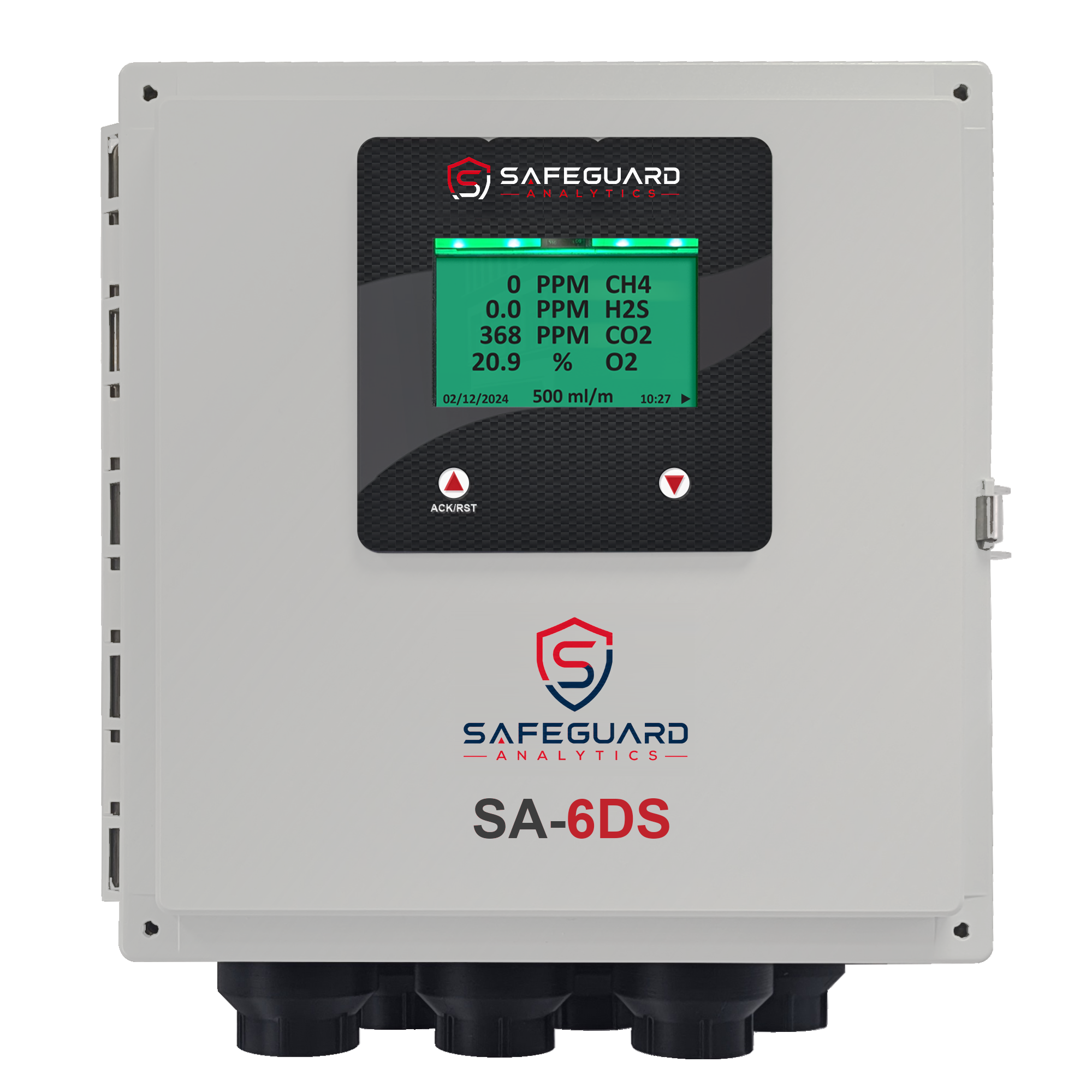

Available in 4DS or 6DS configurations.
Where this product is deployed
- Indoor and outdoor applications
- Perimeter and zone site monitoring for early leak detection
- Gas bottling for bottle validations
- Indoor compost hall
- Food and Beverage
- Industrial manufacturing sites
- Battery storage locations
Features & Capabilities
System Controller
- System capacity 4 or 6 sensors - model dependent
- Auto-configuration with Safeguard Analytics smart sensors
- LCD display HMI with color status indicators
- Serial RS-485 Modbus RTU output
- Optional alarm relays: 4 × 5A relays
Electrical
- Standard: 10-30 VDC
- Optional 90-240 VAC line power
- Power requirements are sensor and display-heater dependent.
Environmental & Enclosure
- -40 °C to +60 °C (-40 °F to +140 °F)
- 15% to 95% RH non-condensing
- NEMA 4X weatherproof enclosure
- Area classification: non-hazardous locations
Technical Specifications
SA-XDS Product Manual
Installation, wiring, configuration, MODBUS mapping, and calibration for the SA2-XDS diffusion multi-sensor system - available to view inline or download.
Full specifications, features, and applications in a printable PDF.
Installation & Service Manual (Rev 3)
SA-XDS ManualComponent layout, field wiring, configuration menu, MODBUS registers, and zero/span calibration for the SA2-XDS - 32 pages.
