The intelligence lives in the sensor
Intelligent Smart Sensor - making the platform possible.

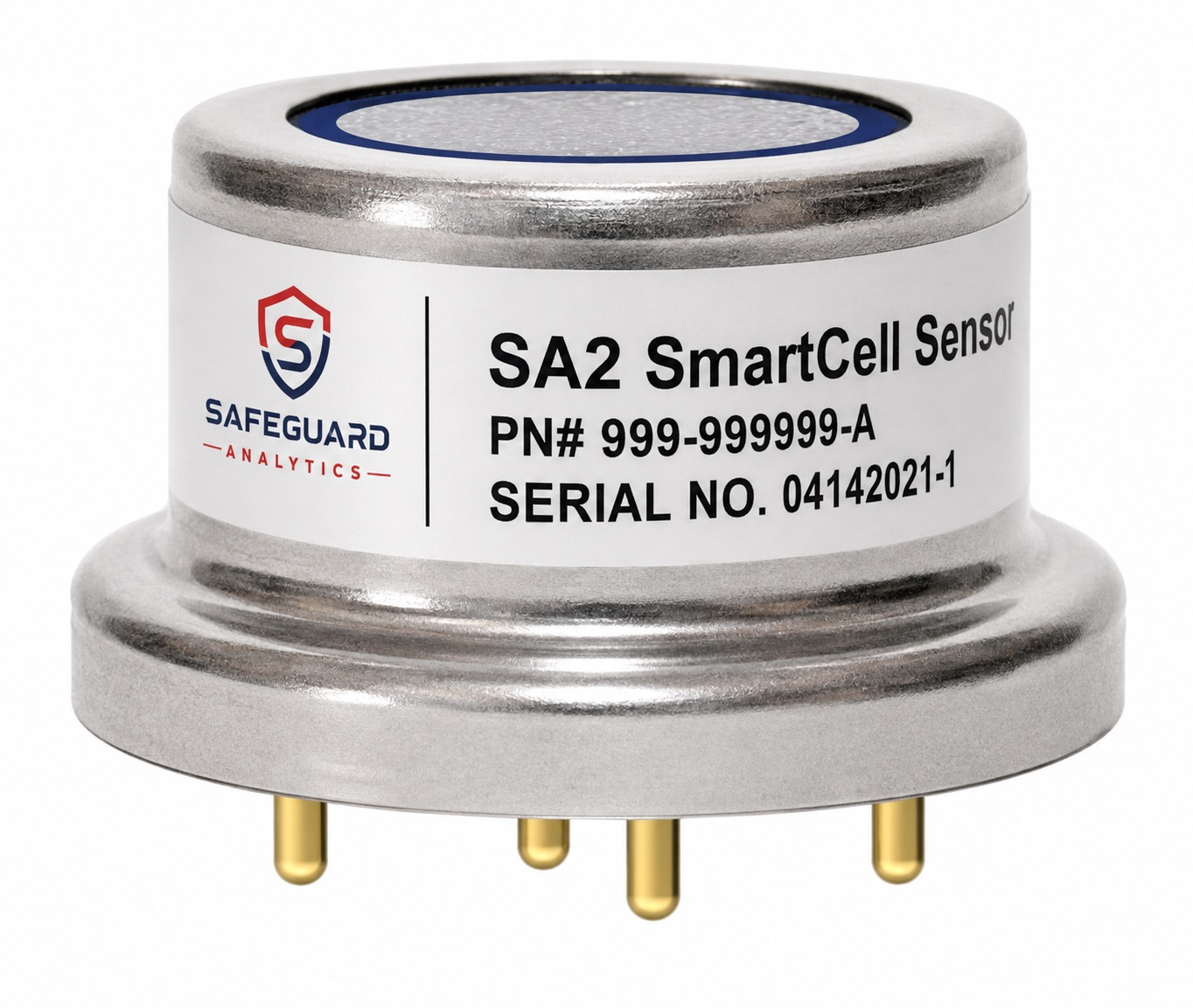

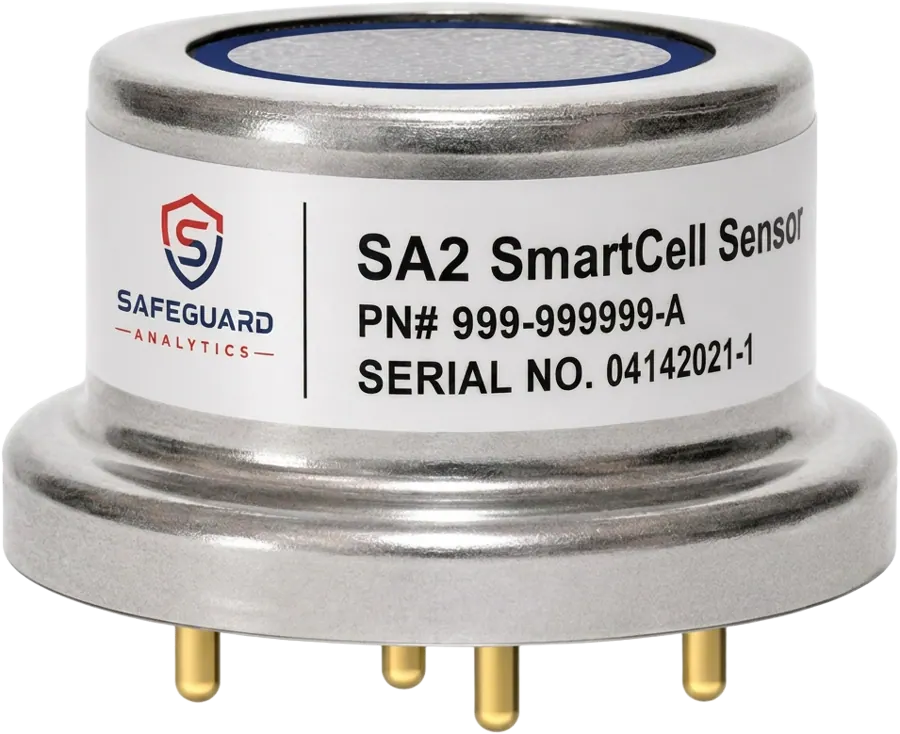

The SA2 Smart Sensor Module combines conventional gas sensing technology with advanced signal processing for diverse safety and environmental monitoring applications. Each module carries a gas detection sensor plus a microprocessor-based conditioning circuit with embedded analytics. Factory programmed for a specific gas and sensitivity range, the SA2 is housed in an RFI/EMI-resistant metallic enclosure with gold-plated pins. A uniform I²C register map across sensor technologies enables OEM standardization and plug-and-play compatibility with smart transmitters and control systems.
Also available separately for integration into your device.
- Combustible Gases
- Toxic Gases
- Carbon Dioxide
- Oxygen Deficiency
- Volatile Organic Compounds
Applications
Where the SA2 can be deployed in Safeguard Products.
- Perimeter and fenceline monitoring
- Emissions monitoring
- Safety levels for toxic and combustible gases
- Process solutions to monitor critical levels of gas
- Combustion monitoring
- Oxygen deficiency applications
- VOC for multiple applications
- Hydrocarbons in multiple applications
Features & Capabilities
Electrical
- Power input: 3.3 VDC
- Power consumption: 10 mW to 1.2 W (sensor dependent)
- Low power for battery and solar applications
Interface
- Measurement units: LEL, %Vol, PPM, PPB
- Standard I²C slave output across all technologies
- Uniform register map for OEM standardization
- Plug-and-play with smart transmitters and controllers
Mechanical
- Keyed metallic housing for installation and RFI/EMI resistance
- Small form factor: 40 mm × 40 mm × 22 mm
- Gold-plated pins for reliable connectivity
Available SA2 sensor configurations
Each SA2 module is factory programmed for a specific gas and sensitivity range. Download the full datasheet as a PDF, or browse the datasheet library.
Contact factory for gases and ranges not listed
Technical Specifications
SA2 Documentation
Product data sheet and full instruction manual for the SA2 Smart Sensor Module - available to view inline or download.
Product Data Sheet (March 2025)
SA2 Product SheetStandard features, key data points, typical applications, and the full standard gas list for SA2 smart sensor modules - 1 page.
Instruction Manual (Rev 1.5)
SA2 ManualInstallation, wiring, calibration, and maintenance for the SA2 Smart Sensor Module - 19 pages.
