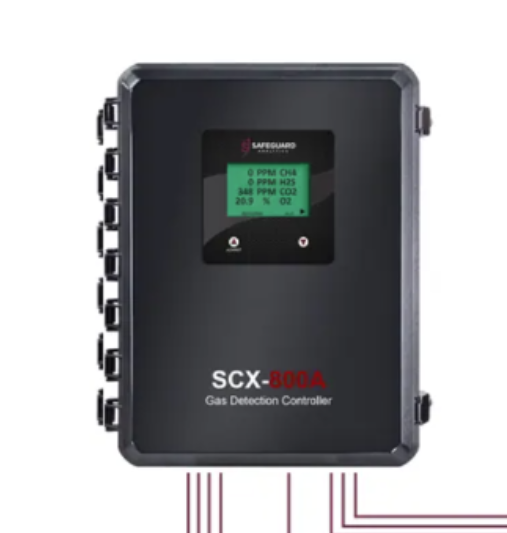

Model SCX
Gas Detection Control System
The SCX is a scalable gas detection controller engineered for continuous monitoring and measurement of toxic and combustible gases across local and distributed environments. Featuring multi-screen navigation and configurable alarm logic, the controller supports both digital and analog architectures - managing up to 32 digital channels and 8 to 16 analog (4–20 mA) inputs. Compatible with SA-220 and SA-220B transmitters, depending on the application. The system features automatic detection and configuration for Safeguard Analytics smart sensor modules, an intuitive full-color HMI, and rapid parameter setup via the Safeguard Configuration App. The system features automatic detection and manual configuration for Analog devices. Enclosures are available in Polycarbonate or Stainless Steel.
Specifications1
1 Specifications subject to change without notice.
Features
System Controller
- Up to 32 digital channels plus options 8 to 16 analog devices
- Compatible with SA-220 and SA-220B transmitters, depending on the application
- Color LCD HMI with green, amber, red, and blue status indicators
- Serial RS-485 Modbus RTU output
- Optional relay output
Electrical
- Standard: 10-30 VDC
- Optional: 90-240 VAC line power
- Alarm relays: Level 1, 2, 3 + Fault (Form C 5 A contacts)
Environmental & Enclosure
- -40 °C to +60 °C (-40 °F to +140 °F)
- 15% to 95% RH non-condensing
- NEMA 4X weatherproof enclosure
- Enclosure material options: Polycarbonate or Stainless Steel
- Non-hazardous locations
Applications
- Fixed gas monitoring solutions
- Food and Beverage monitoring
- Safety applications
- Industrial manufacturing plants
- Mixed analog and digital sensors
