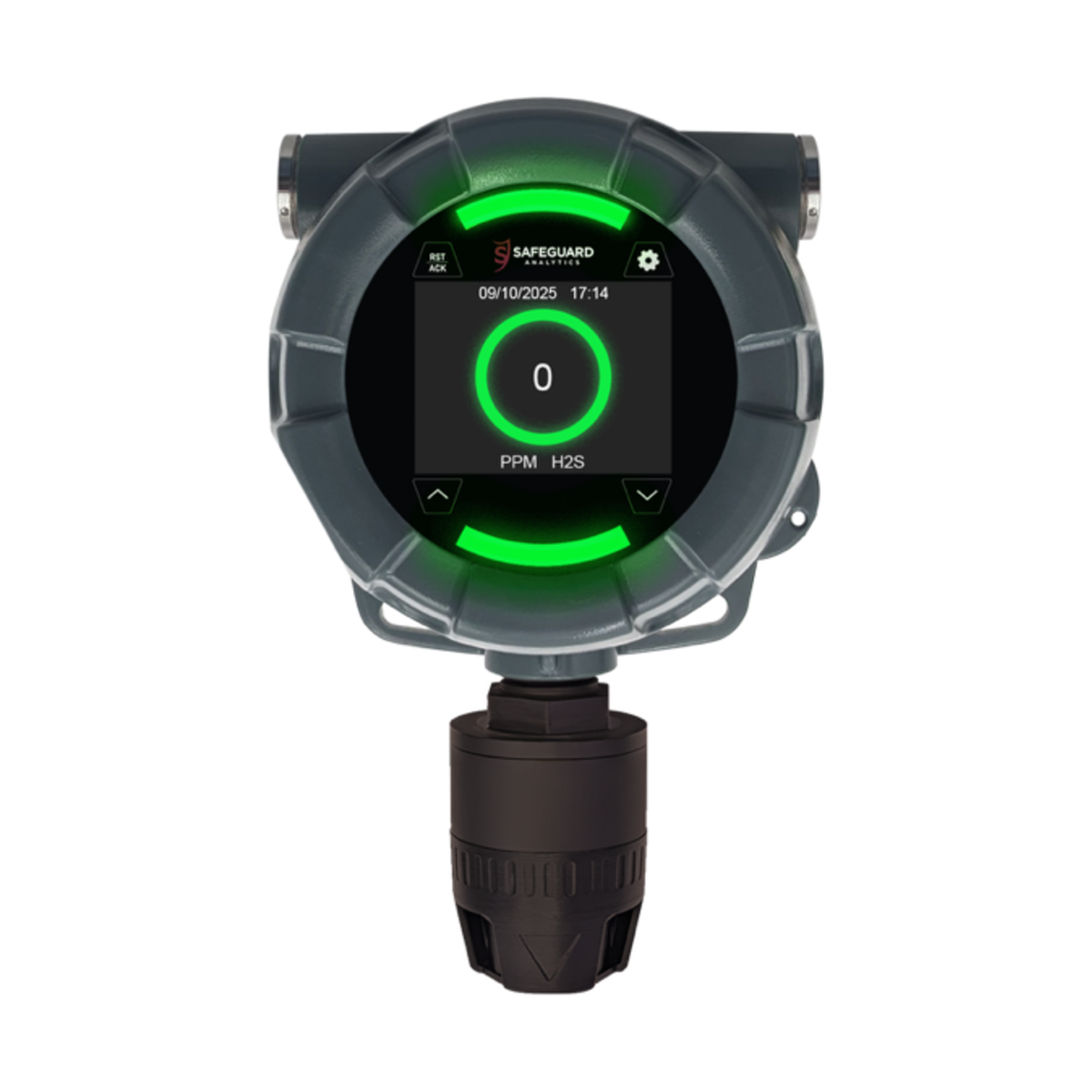

Model SA-220NH
Non-Hazardous Gas Detector
The SA-220NH is a fixed gas detector built for non-hazardous ambient-air applications. It pairs a full-color TFT display with plug-and-play SA2 smart sensor modules, so the detector automatically reads gas type, sensitivity range, and serial number at startup. ABS or aluminum housing options, a magnetic interface, and optional Bluetooth configuration through the OpCheck app make it a practical choice for commercial and light industrial installations where hazardous-area certification is not required.
Specifications1
1 Specifications subject to change without notice.
Features
Universal Transmitter
- Full-color digital display
- Non-intrusive magnetic interface
- Plug-and-play SA2 smart sensor modules across a wide gas catalog
- Auto-configuration with the SCX control system
- 10 Event Logs
- Bluetooth connect to OpCheck® application for Android and iOS handhelds
- Optional relay output: 3 alarm levels and fault - 5 V, 2 A dry contact
Integration
- Serial Modbus RTU (single address) & analog 4-20 mA DC per active channel
- Power input: 10-30 VDC
- Power consumption: 0.75 W to 2 W (smart sensor dependent)
Environmental & Enclosure
- Temperature range: -40 °C to +60 °C (-40 °F to +140 °F)
- Humidity: 0-99% RH non-condensing
- Ingress protection: NEMA 4X, IP66
- ABS or aluminum housing for non-hazardous locations
Area Classification
- Non-hazardous locations
- Suitable for commercial and light industrial ambient-air monitoring
Applications
- Non-hazardous fixed point monitoring in industrial facilities
- Standalone installations or networked to SCX
- Commercial and light industrial environments
- Integration with Modbus & 4-20 mA hosts and PLCs
